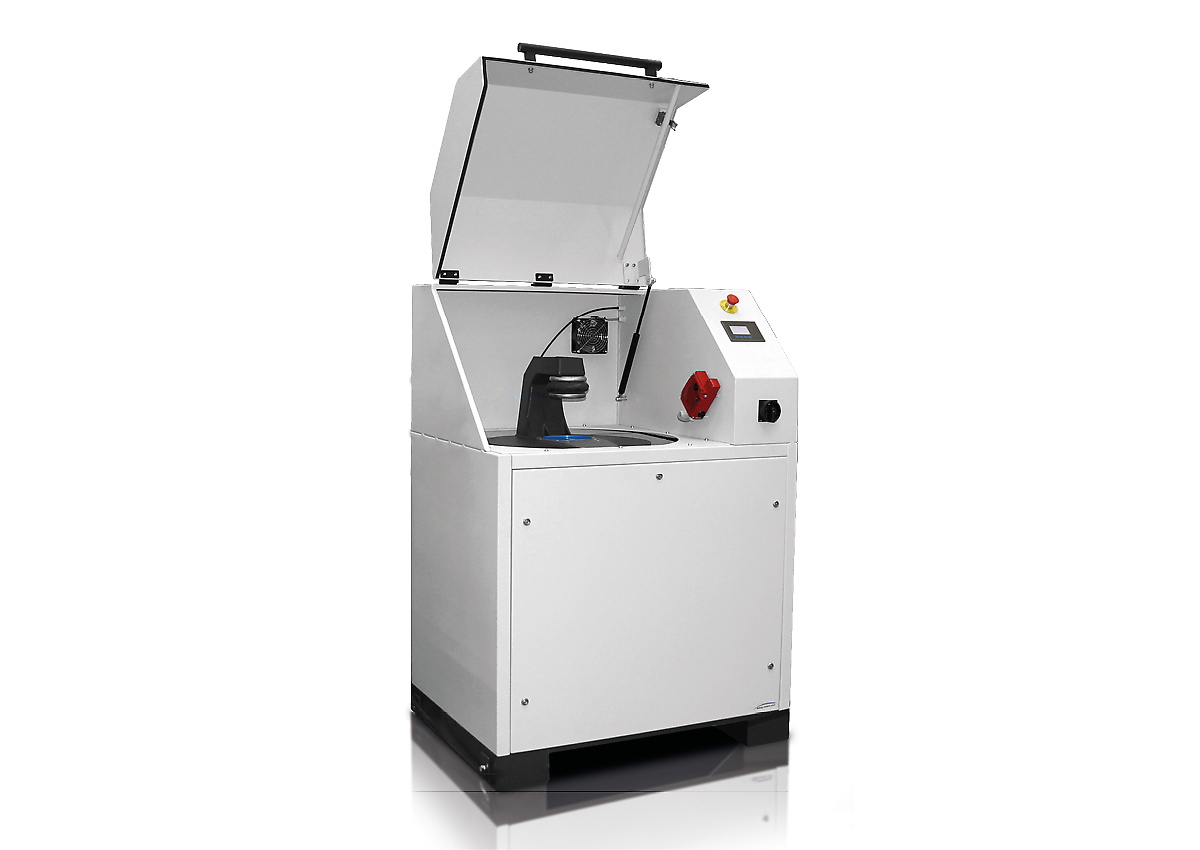

No grinder can beat the speed of a Vibratory Disc Mill when it comes to preparing samples for spectral analyses. RETSCH’s Vibratory Disc Mill RS 300 is suitable for rapid, loss-free and reproducible grinding of medium-hard, brittle and fibrous materials.
Thanks to the robust universal drive shaft, which sets the grinding jar into a 3D motion, the RS 300 accepts grinding set weights of up to 30 kg. The closed grinding system guarantees complete processing of the sample.
Grinding sets are available in a variety of sizes and materials, allowing for easy adaptation to application requirements.

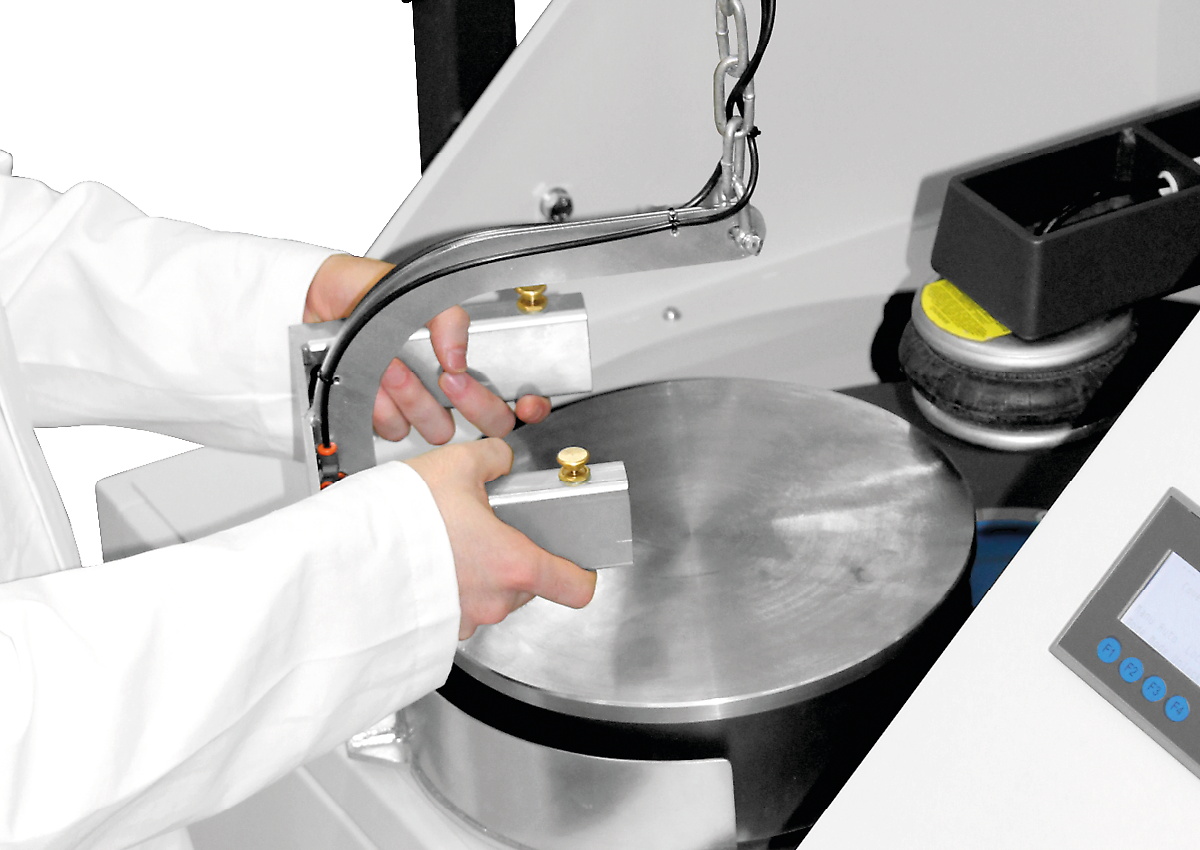

Operation and handling of the RS 300 and its grinding sets is convenient and ergonomic. The AutoLifter is an optional accessory which greatly facilitates ergonomic lowering and lifting of the high-capacity grinding sets. It is simply placed around the grinding set and activated by pushing a button.
The pneumatic clamping device allows for convenient and safe fastening of the jar. The mill only starts if the pneumatic pressure is correct and the device lifts automatically when the grinding process stops.
The grinding parameters are entered using a keypad. While the programmable interval function helps to improve grinding results, the autoreverse function reduces caking effects inside the grinding jar.
Thanks to a variety of sizes and materials of the grinding sets, the RS 300 is suitable for a wide range of applications. The mill accommodates batch sizes from 35 ml to 2000 ml and material feed sizes up to 20 mm.

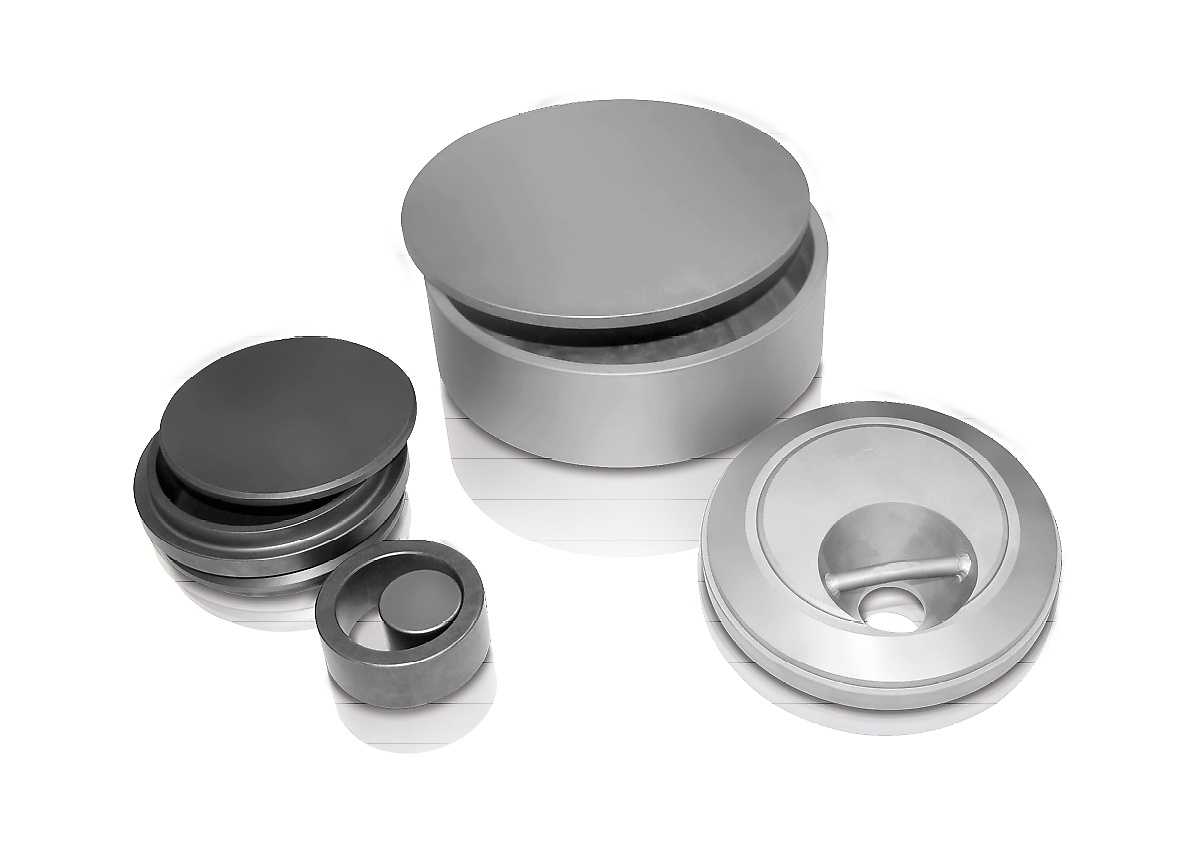

A grinding set for the vibratory disc mill consists of a grinding jar with cover and a grinding disc. The 400 ml grinding set also contains a grinding ring, the 300 ml grinding sets has two additional grinding rings.
The grinding sets are characterized by the following features:
RETSCH’s Vibratory Disc Mills rapidly pulverize materials such as cement, cement clinker, ceramics, coal, coke, concrete, corundum, glass, metal oxides, minerals, ores, silicate, slag, soil, etc.
slakken
electronisch schroot
iridium
dolomite
Bezoek onze toepassingsdatabase om de beste oplossing voor uw monstervoorbereiding of analyse te vinden.
| Toepassingen | malen, mengen, tritureren |
| Toepassingsdomein | Milieu / Recycling, bouwmaterialen, geologie / metallurgie, glas / keramiek |
| Toevoermateriaal | medium-hard, hard, breekbaar, vezelig |
| Maalprincipe | druk, wrijving |
| Korrelgrootte materiaal* | < 20 mm |
| Eindfijnheid* | < 20 µm |
| Batchgrootte / Toevoerhoeveelheid* | 35 - 2,000 ml |
| Snelheid bij 50 Hz (60 Hz) | 912 min-1 |
| Materiaal van maalwerktuigen | chrome steel (hardened steel), wolfraamcarbide, staal 1.1740 (voor het malen zonder zware metalen) |
| Maalbeker maten | 50 ml / 100 ml / 300 ml / 400 ml / 800 ml / 1,000 ml / 2,000 ml |
| Instelling maalduur | digital, 00:00 to 59:59 |
| Aandrijving | 3-fasenmotor |
| Aandrijfvermogen | 2.2 kW |
| Gegevens electriciteit | verschillende spanningen |
| Aansluiting electriciteit | 3-fasen |
| Beschermingsklasse | IP 40 |
| B x H x D gesloten | 1150 x 1400 x 810 mm |
| Netto gewicht | ~ 415 kg (zonder maalset) |
| Standaarden | CE |
De Schijventrilmolen maalt door impact en wrijving. De maalset wordt vast aangedrukt tegen de trilplaat met een snelspansysteem. De trilplaat wordt dan onderworpen aan 3-D vibraties.
De centrifugaal krachten die op de maalringen inwerken, resulteren in extreme druk-, impact- en wrijvingskrachten, die op het monster inwerken. De vibraties worden bekomen door middel van een 3-phase frequentie gecontroleerde 2.2 kW motor.
