Kogeltrilmolen MM 400

Kogeltrilmolen MM 400

Vraag een vrijblijvende offerte aan!

Gelieve de items te selecteren die u wenst toe te voegen. U kan items van andere productpagina's toevoegen.

Uw selectie zal zichtbaar worden in de rechter bovenhoek van de website.

Algemene Aanvraag

Weet u niet precies wat u nodig heeft of wenst u een algemene aanbieding?

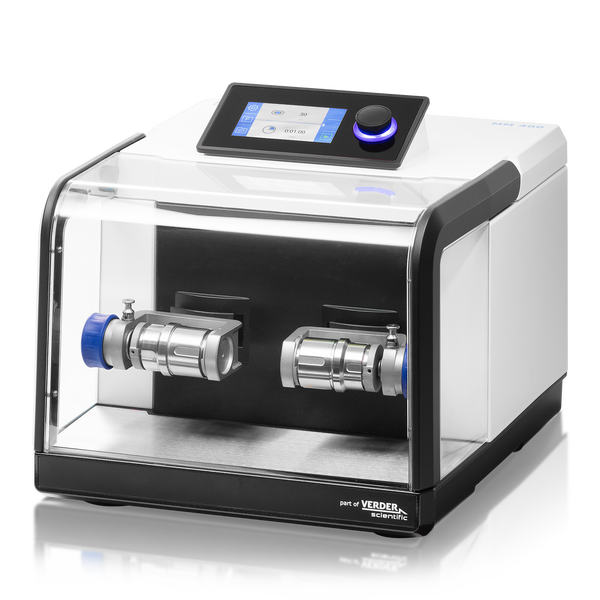

Kogeltrilmolen MM 400

Kogeltrilmolen MM 400 met snelspanklemmen
(gelieve maalpotten en -knikkers afzonderlijk te bestellen)
20.715.0001
MM 400100–240 V, 50/60 Hz

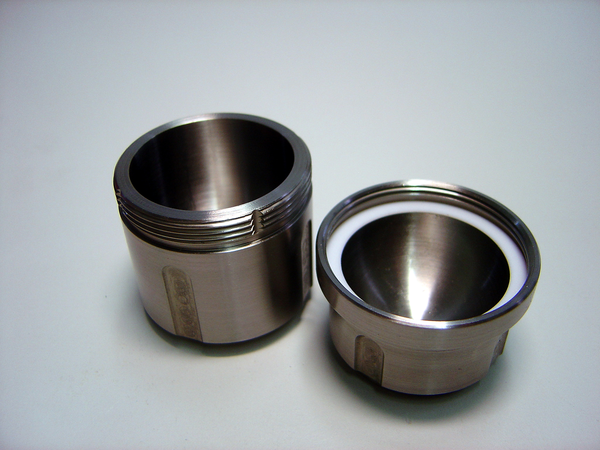

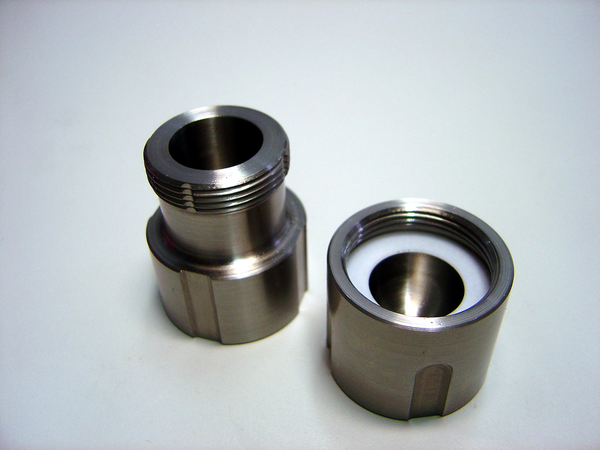

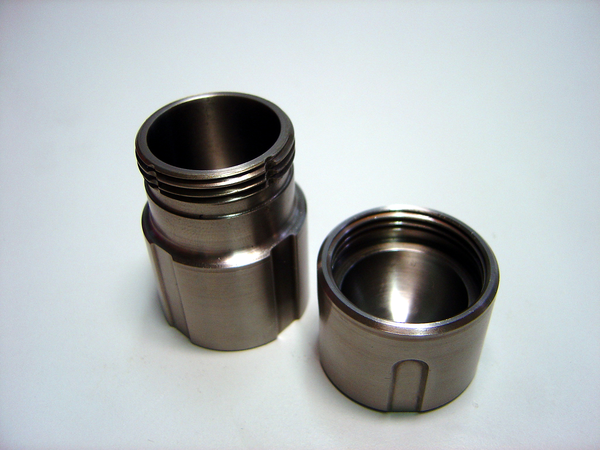

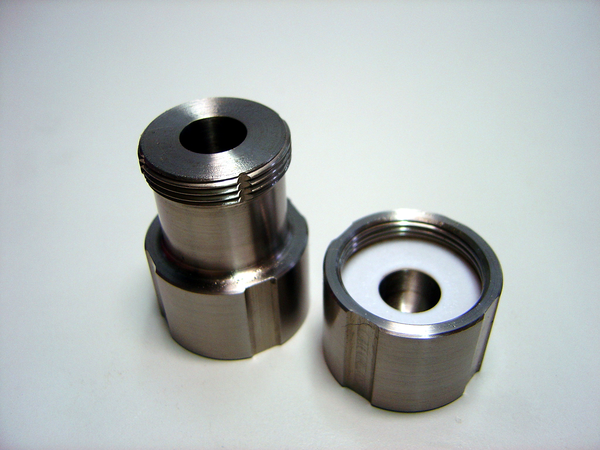

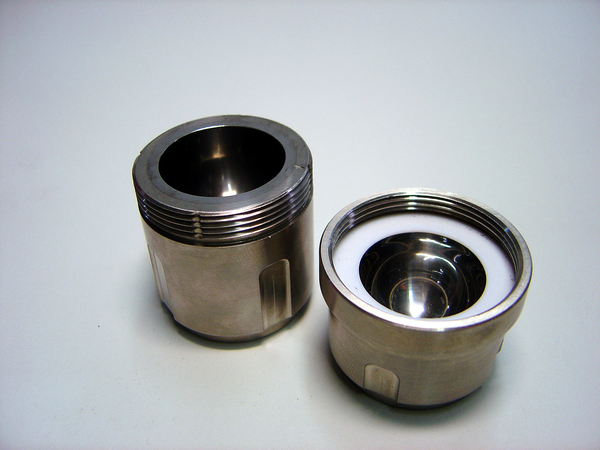

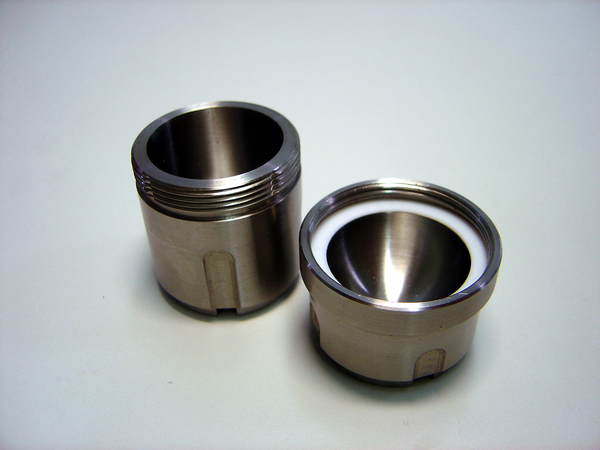

Maalbekers MM 400, met schroefdeksel

Selectiehulp
Selectiehulp
Screw-top grinding jars are dust- and air-tight which makes them suitable for dry, wet and cryogenic grinding. Moreover, they safely enclose inert atmosphere, for example after the jar was filled inside a glove box.

Always select a grinding jar size suitable for the sample volume (approx. 30% of the jar is filled with sample material). Grinding jars are provided in sizes ranging from 1,5 ml to 50 ml (not all sizes available in all materials).

The document “Grinding Jar Ball Charge” in the Downloads section provides details about usable volumes, maximum feed sizes and correct filling of the jars with grinding balls for dry and wet milling as well as cell disruption.

For efficient and contamination-free grinding processes the grinding jars are available in 6 different materials (no undesired abrasion).

The energy input increases with the density of a material. For pulverizing soft samples, materials with a low to medium density should be used, whereas for hard samples it is better to use high-density materials.

Available materials:

  • Hardened steel (density 7.8 g/cm3; hardness ≤ 235 HB, medium abrasion resistance)
    typically used for pulverizing medium-hard to hard and brittle samples.

  • Stainless steel (density 7.7 g/cm3; hardness ≤ 245 HB, medium abrasion resistance)
    typically used for pulverizing medium-hard to hard and brittle samples.

  • Tungsten carbide (density 14.8 g/cm3; hardness 93.6 HRA; high abrasion resistance)
    used for grinding very hard, brittle sample materials. By using tungsten carbide, contamination of the sample with iron is prevented.

  • Agate (density 2.6 g/cm3; hardness 6.5 – 7 Mohs, low abrasion resistance)
    a highly pure natural material suitable for pulverizing soft to medium-hard or fibrous samples. Due to its low-density agate is suitable for gentle grinding processes with low energy input.

  • Zirconium oxide (density 6.05 g/cm3; hardness 1250 HV, high abrasion resistance)
    ceramic material suitable for pulverizing medium-hard to hard and fibrous samples. It is typically used for heavy-metal-free grinding processes or applications which aim at ultrafine particle sizes.

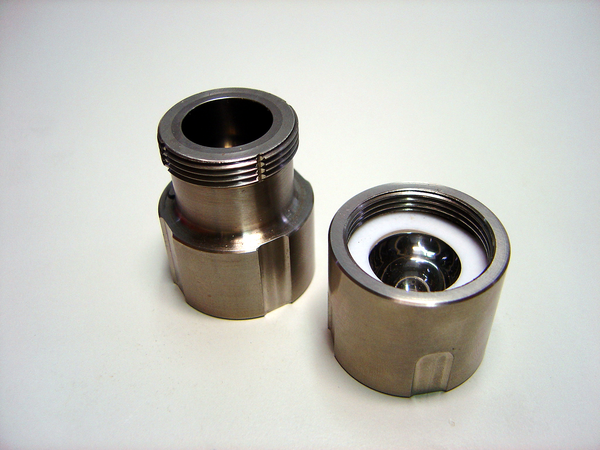

Gehard staal

01.462.023725 ml

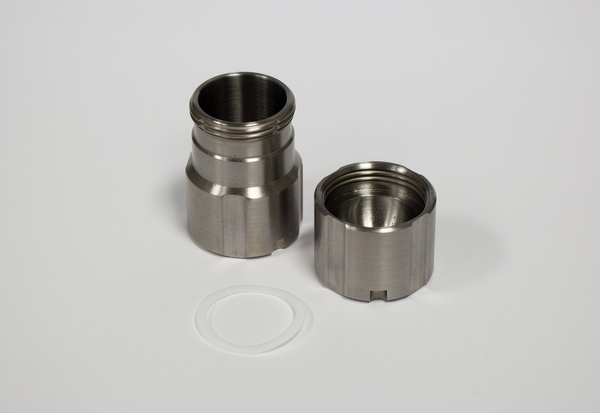

Roestvrij staal

01.462.02301.5 ml
01.462.02315 ml

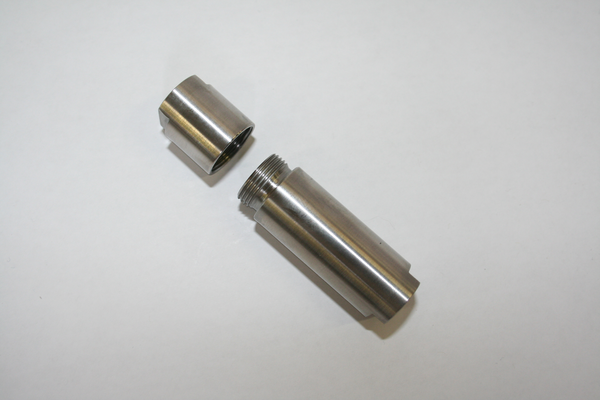

01.462.02905 ml (for use with adapter 02.706.0351)
01.462.023610 ml
01.462.021325 ml
01.462.021435 ml
01.462.021650 ml

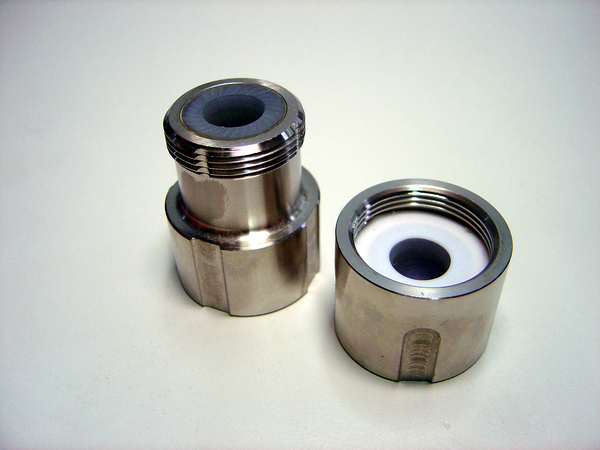

Wolframcarbide

01.462.023510 ml
01.462.021725 ml


Agaat

01.462.02325 ml
01.462.023310 ml

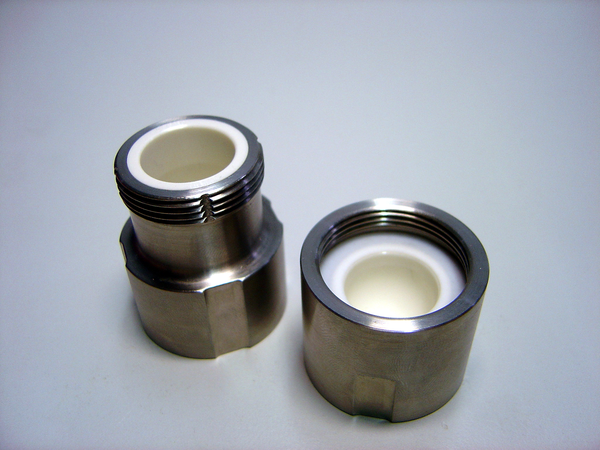

Zirconium oxide

01.462.023410 ml
01.462.020125 ml
01.462.021535 ml

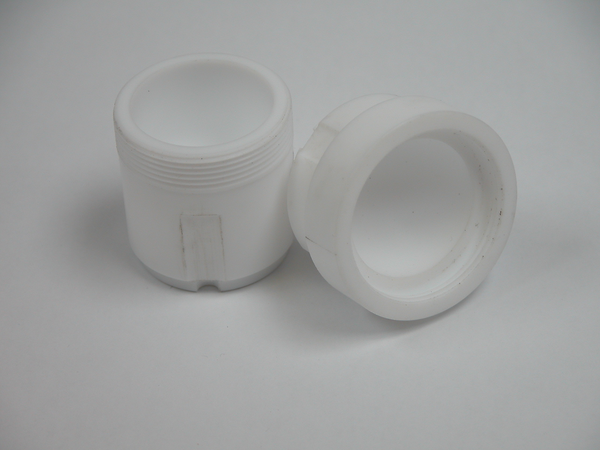

PTFE

01.462.023825 ml
01.462.024435 ml

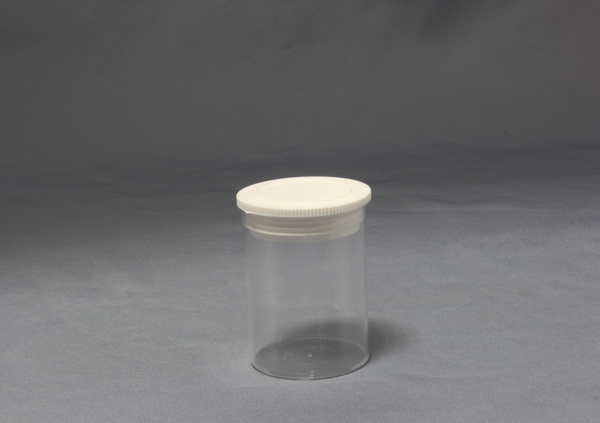

05.068.0004Mengbekers uit polystyreen, 28 ml, 100 stuks
05.068.0006Mengbekers uit polystyreen, 56 ml, 100 stuks

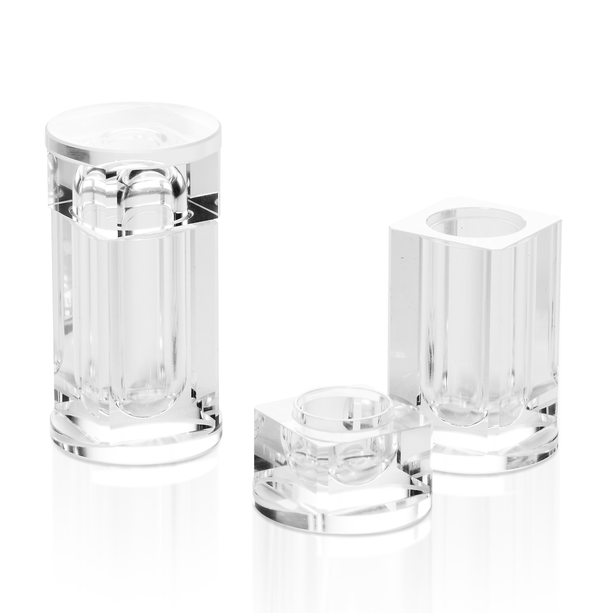

PMMA, transparent jars for mechanosyntheses

01.462.053910 ml, 10 pieces
02.462.053910 ml, 2 pieces


Toebehoren voor maalbekers MM 400

02.486.0005Klem om maalbekers te openen

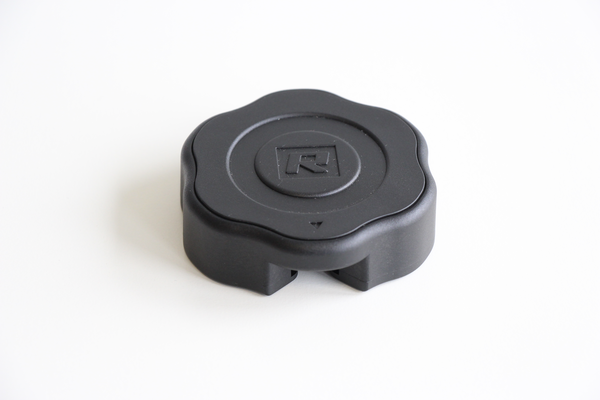

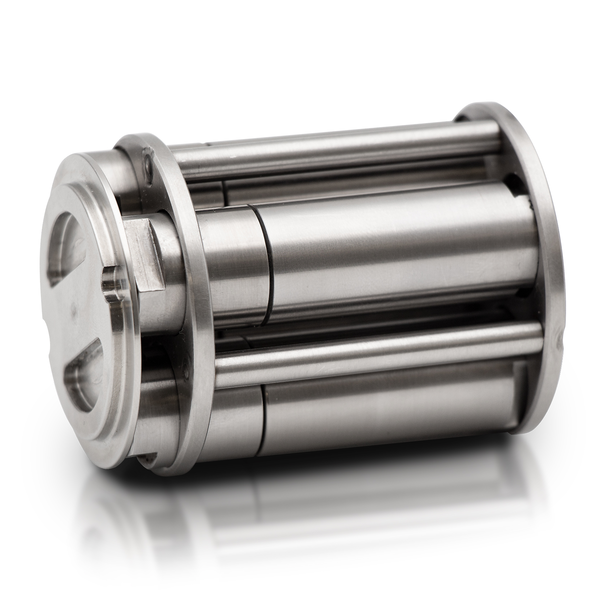

02.706.0351Adapter for use of 2/4 grinding jars 5 ml (01.462.0290) (Only for MM 400 with item no. 20.715.0001)

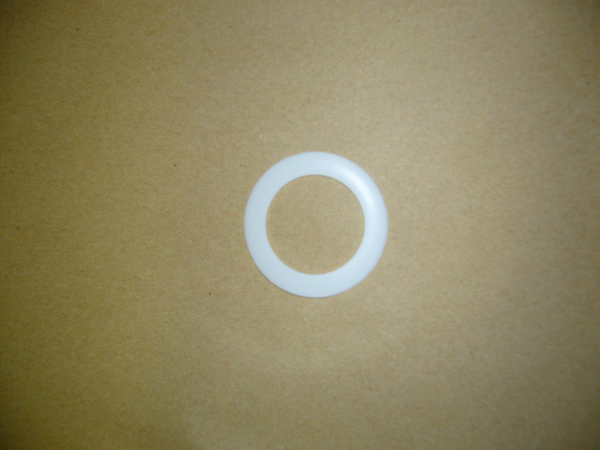

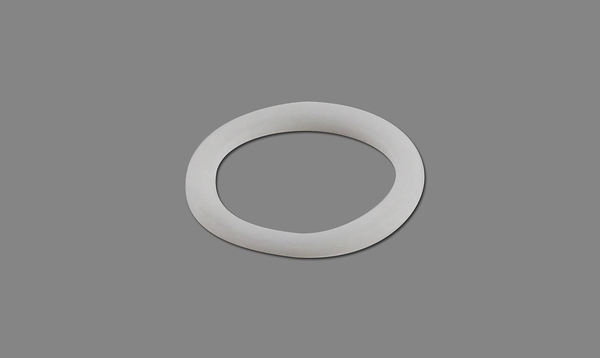

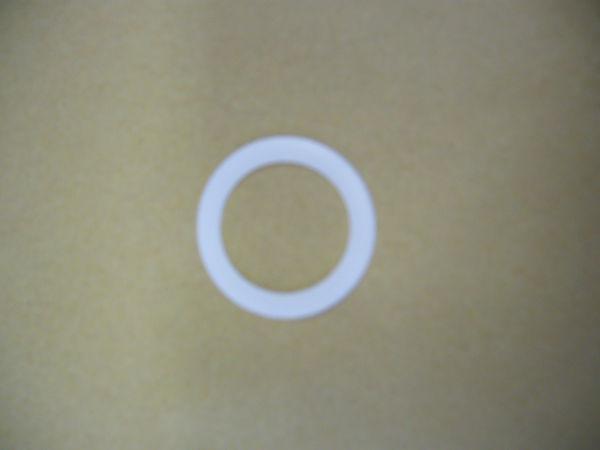

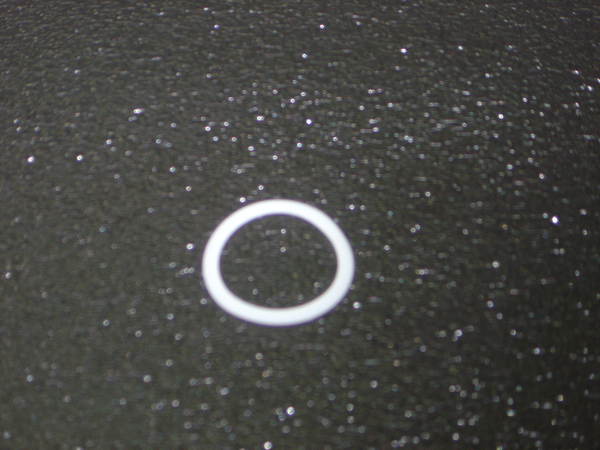

03.111.0229Dichting voor maalbekers 1.5 ml, 10 stuks
03.111.0231Gasket for grinding jar 5 ml, 10 pieces (for grinding jar 01.462.0231)
03.111.0262Gasket for grinding jar 5 ml, 10 pieces (for grinding jar 01.462.0290)

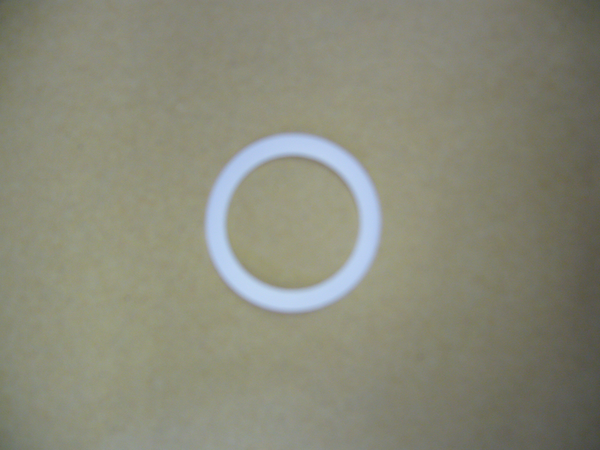

03.111.0232Dichting voor maalbekers 10 ml, 10 stuks
03.111.0228Dichting voor maalbeker 25 ml gehard staal en roestvrij staal, 10 stuks
03.111.0212Dichting voor maalbeker 25 ml zirconium oxide en wolframcarbide, 10 stuks
03.111.0224Dichting voor maalbeker 35 ml roestvrij staal, 10 stuks
03.111.0222Dichting voor maalbeker 35 ml zirconium oxide, 10 stuks
03.111.0209Dichting voor maalbeker 50 ml roestvrij staal, 10 stuks


Toebehoren voor mengen en celdisruptie MM 400

The conical centrifuge tubes are perfectly suitable for mixing powders or liquids, e. g. for the extraction of pesticide residues with the QuEChERS method.

They can also be used for enzyme extraction from cell suspensions – up to 8 x 30 ml cell suspension are disrupted in one step. Soft tissue like liver may also be homogenized in these tubes.

For biological applications like cell disruption or homogenization of small tissue samples a variety of single-use vials are available. For cell disruption glass beads are the best choice.

The document “Grinding Jar Ball Charge” in the Downloads section provides details about usable volumes, maximum feed sizes and correct filling of the jars with grinding balls for dry and wet milling as well as cell disruption.

For further questions please contact our application experts.
22.001.0020Adaptor voor 4 conische centrifugebuizen (bvb. Falcon® buizen), 2 stuks, incl. 20 buizen

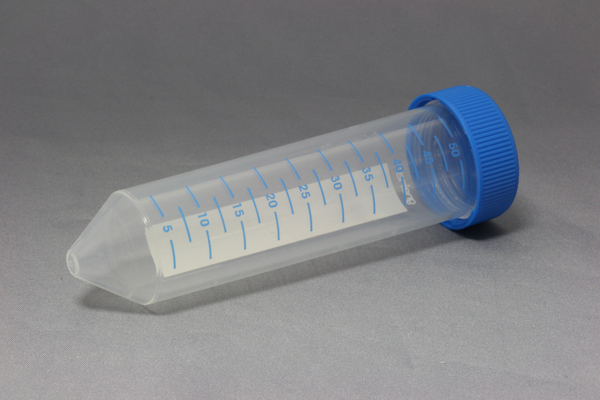

05.026.0001Conische centrifuge buizen, 50 ml, 20 stuks
22.001.0021Adaptor voor 4 wijdmondsflessen, 2 stuks, incl. 12 wijdmondsflessen, 30 ml


Toebehoren voor koude vermaling MM 400

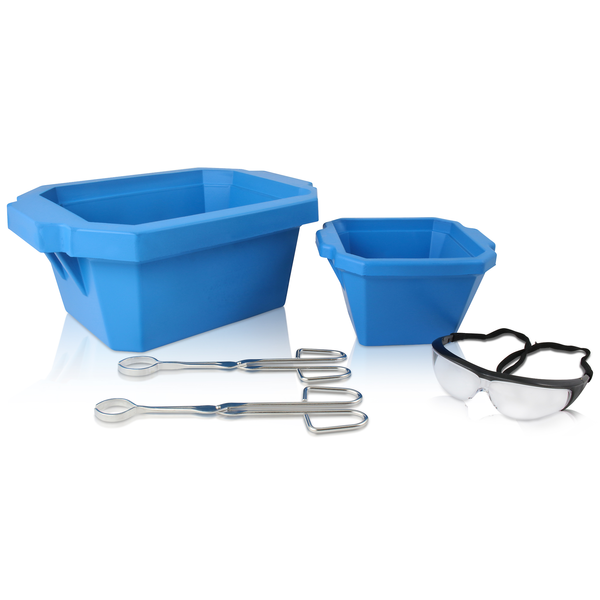

For cold grinding (cryogenic grinding) we recommend using the Cryo kit which consists of two pairs of tongs, two insulated containers (1 & 6 liters) as well as a pair of safety goggles.
Please only use grinding jars of hardened or stainless steel for cryogenic grinding. When using jars made of other materials, inner tension may build up and lead to damages of the jar under extreme temperature variations.

Attention:

First, the jar is filled with sample and ball(s), then the lid is screwed tightly, and the jar is immersed with the tongs in the container filled with liquid nitrogen. After a few minutes (the liquid nitrogen should no longer boil) the sample has been indirectly embrittled inside the jar which can now be removed with the help of the tongs and clamped into the mill. Please never fill liquid nitrogen into the grinding jar because it evaporates and causes a considerable overpressure inside the jar.
22.354.0001Cryo kit voor koeling van de maalbekers met vloeibare stikstof (incl. 2 geïsoleerde bakken (1 en 4 liter), 2 grijptangen, 1 veiligheidsbril)


Toebehoren MM 400

99.200.0043IQ/OQ Documentatie voor MM 400


Toebehoren voor cel- en weefseldisruptie

For biological applications like cell disruption or homogenization of small tissue samples a variety of single-use vials are available. For cell disruption glass beads are the best choice.

The document “Grinding Jar Ball Charge” in the Downloads section provides details about usable volumes, maximum feed sizes and correct filling of the jars with grinding balls for dry and wet milling as well as cell disruption.

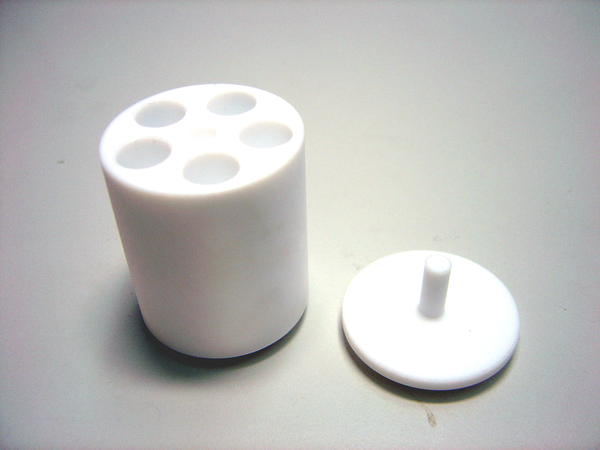

22.008.0010Adapter for  5 reaction vials 5.0 ml, made of PTFE
22.008.0008Adapter for 10 reaction vials 1.5 and 2.0 ml, made of PTFE or stainless steel

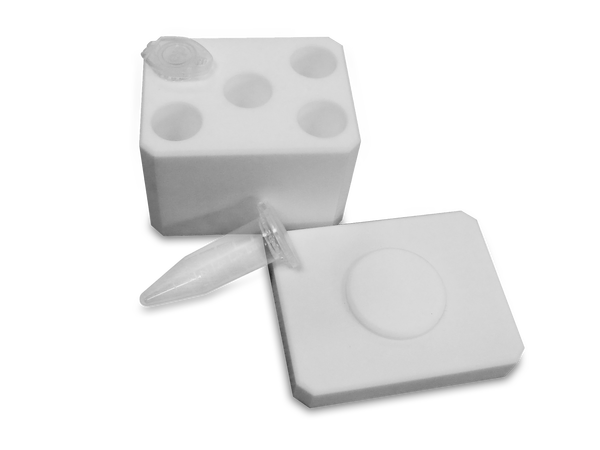

22.008.0005Adapter for  5 reaction vials 1.5 and 2.0 ml, made of PTFE or stainless steel
22.008.0006Adaptor voor 10 reactiebuisjes 0.2 ml, uit PTFE

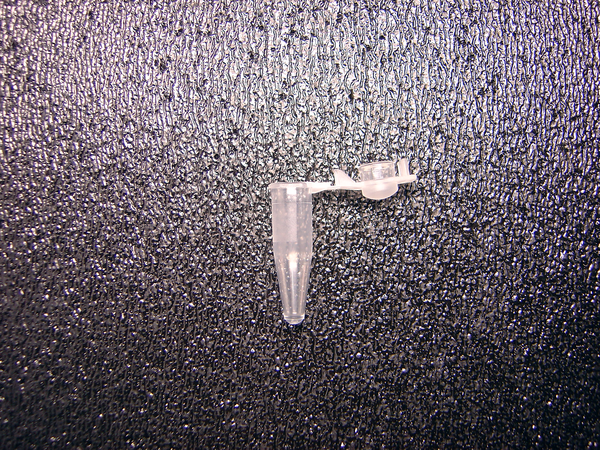

22.749.0006Safe-lock reactie vials 5.0 ml, 200 stk.
22.749.0001Safe-lock reactiebuisjes 2.0 ml, 1000 st.
22.749.0002Safe-lock reactiebuisjes 1.5 ml, 1000 st.
22.749.0004Safe-lock reactiebuisjes 0.2 ml, 1000 st.

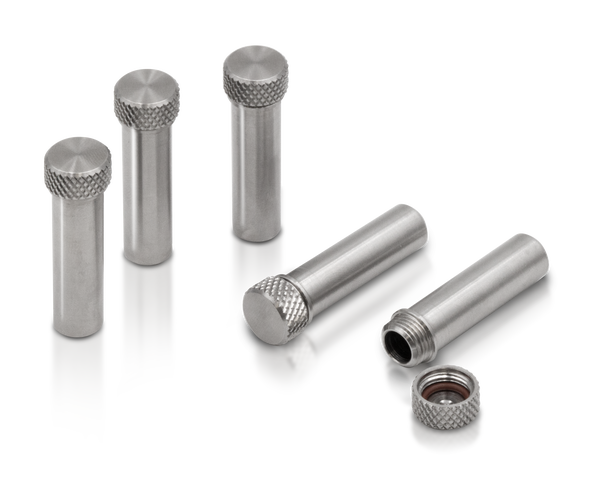

22.749.0008Reaction vials made of stainless steel 316L, 2.0 ml, 10 pcs.

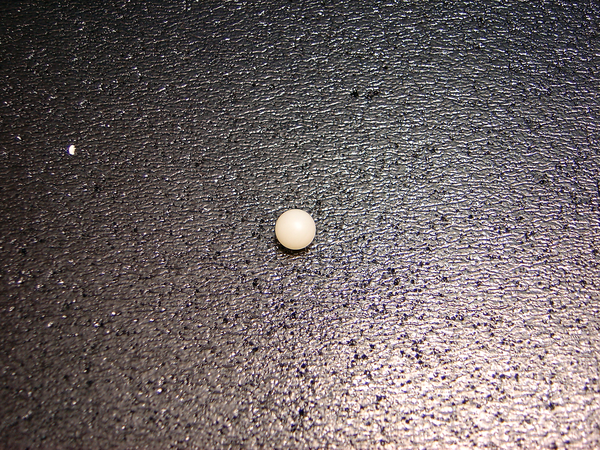

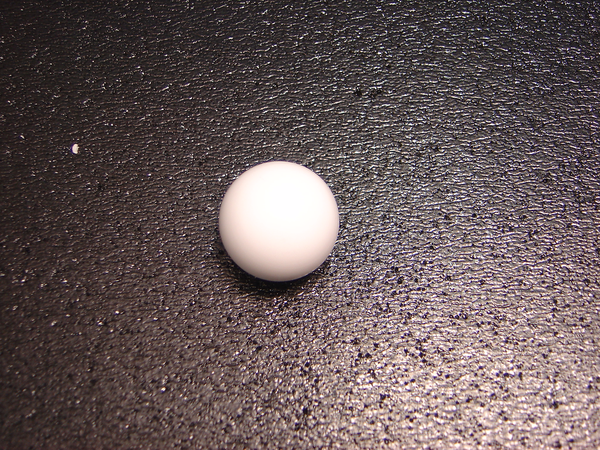

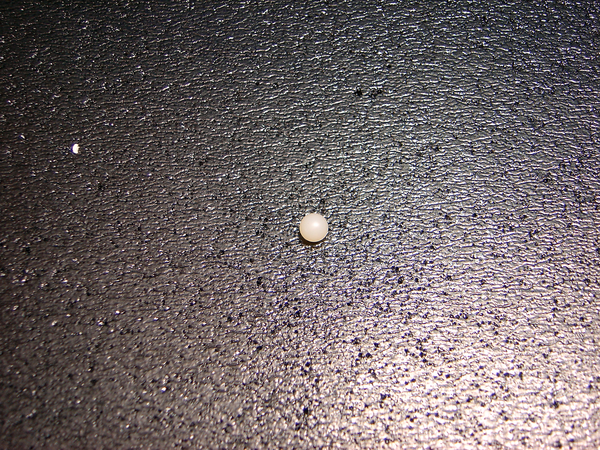

Maalkogels

Selectiehulp
Selectiehulp
Grinding balls and grinding jars should always be selected from the same material.

Grinding balls are available in different diameters. The rule of thumb is: for efficient milling the ball should be at least 3 times larger than the largest particle in the sample. To avoid abrasion and wear it is essential to only use balls with identical diameter.

The number of grinding balls depends on the jar volume used. The document “Grinding Jar Ball Charge” in the Downloads section provides details about usable volumes, maximum feed sizes and correct filling of the jars with grinding balls for dry and wet milling as well as cell disruption. For further information on materials please see the document “Material Analyses of Equipment & Accessories“ in the Downloads section.

Available materials:

  • Hardened steel (density 7.8 g/cm3; hardness ≤ 235 HB, medium abrasion resistance)
    typically used for pulverizing medium-hard to hard and brittle samples.

  • Stainless steel (density 7.7 g/cm3; hardness ≤ 245 HB, medium abrasion resistance)
    typically used for pulverizing medium-hard to hard and brittle samples.

  • Tungsten carbide (density 14.8 g/cm3; hardness 93.6 HRA; high abrasion resistance)
    used for grinding very hard, brittle sample materials. By using tungsten carbide, contamination of the sample with iron is prevented.

  • Agate (density 2.6 g/cm3; hardness 6.5 – 7 Mohs, low abrasion resistance)
    a highly pure natural material suitable for pulverizing soft to medium-hard or fibrous samples. Due to its low-density agate is suitable for gentle grinding processes with low energy input.

  • Zirconium oxide (density 6.05 g/cm3; hardness 1250 HV, high abrasion resistance) ceramic material suitable for pulverizing medium-hard to hard and fibrous samples. It is typically used for heavy-metal-free grinding processes or applications which aim at ultrafine particle sizes.
  • Glass beads are suitable for applications like cell disruption, for example of yeast, bacteria or microalgae. For yeast larger glass beads are best suited whereas microalgae require small beads. Glass beads are also used for washing bacteria off surfaces or tissue samples for subsequent diagnosis.


Gehard staal

05.368.00295 mm Ø
05.368.00307 mm Ø
05.368.005910 mm Ø
05.368.003212 mm Ø
05.368.010815 mm Ø

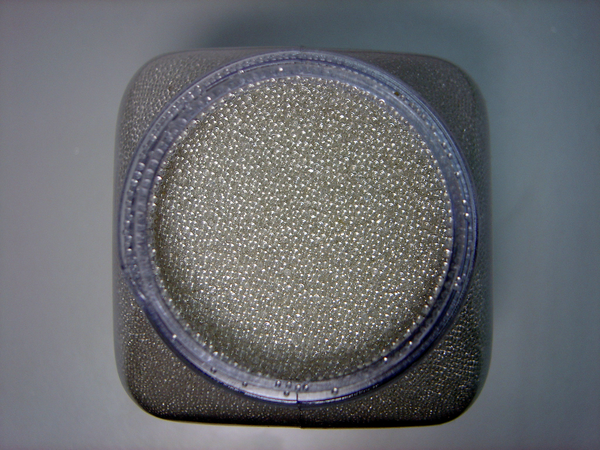

Roestvrij staal

22.455.00102 mm Ø, 500 g (ong. 110 ml)
22.455.00113 mm Ø, 500 g (ong. 120 ml)
22.455.00023 mm Ø, 200 stuks (ong. 6 ml)
22.455.00014 mm Ø, 200 stuks (ong. 14 ml)
22.455.00035 mm Ø, 200 stuks (ong. 25 ml)
05.368.00345 mm Ø
05.368.00357 mm Ø
05.368.006310 mm Ø
05.368.003712 mm Ø
05.368.010915 mm Ø
05.368.006220 mm Ø
05.368.010525 mm Ø


Wolframcarbide

22.455.00063 mm Ø, 200 stuks (ong. 6 ml)
22.455.00054 mm Ø, 200 stuks (ong. 14 ml)
22.455.00045 mm Ø, 200 stuks (ong. 25 ml)
05.368.00385 mm Ø
05.368.00397 mm Ø
05.368.007110 mm Ø
05.368.004112 mm Ø
05.368.011015 mm Ø


Agaat

05.368.00245 mm Ø
05.368.00257 mm Ø
05.368.006710 mm Ø
05.368.002712 mm Ø

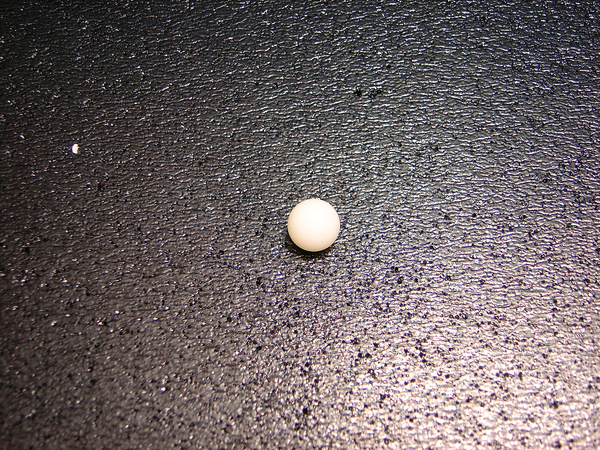

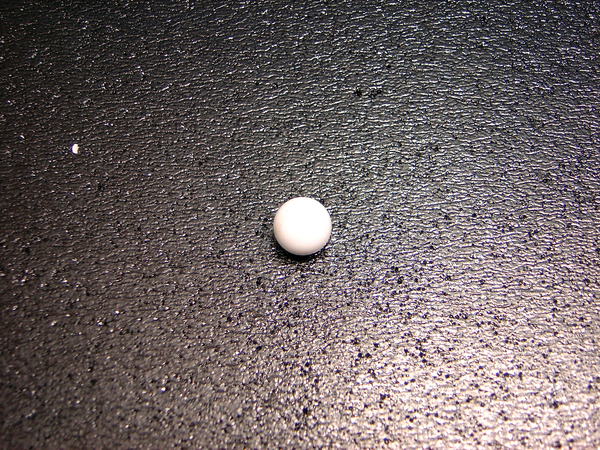

Zirconium oxide

05.368.00892 mm Ø, 0.5 kg (ong. 135 ml)
05.368.00903 mm Ø, 0.5 kg (ong. 140 ml)
22.455.00073 mm Ø, 200 stuks (ong. 6 ml)
22.455.00095 mm Ø, 200 stuks (ong. 25 ml)
05.368.01467 mm Ø
05.368.009410 mm Ø
05.368.009612 mm Ø
05.368.011315 mm Ø
05.368.009320 mm Ø
05.368.010625 mm Ø

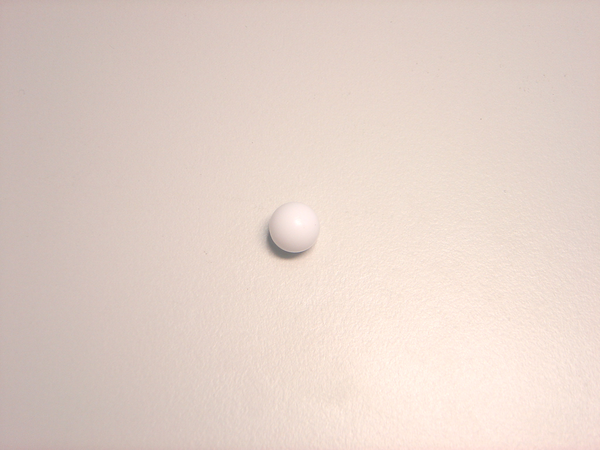

PTFE met stalen kern

05.368.004510 mm Ø
05.368.004612 mm Ø
05.368.011415 mm Ø
05.368.004720 mm Ø


Polyamide voor mengbekers

05.368.00425 mm Ø
05.368.00437 mm Ø
05.368.00449 mm Ø
05.368.000312 mm Ø

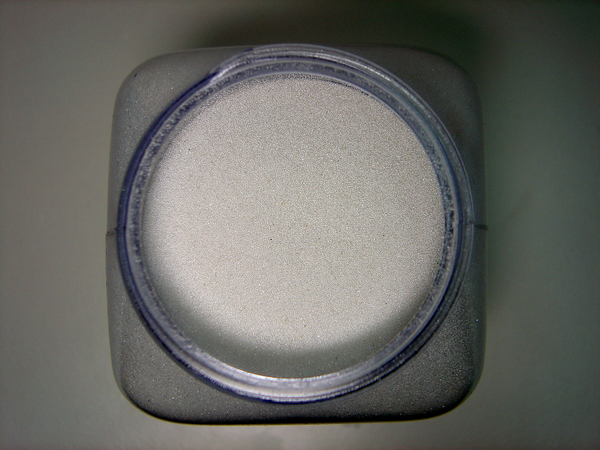

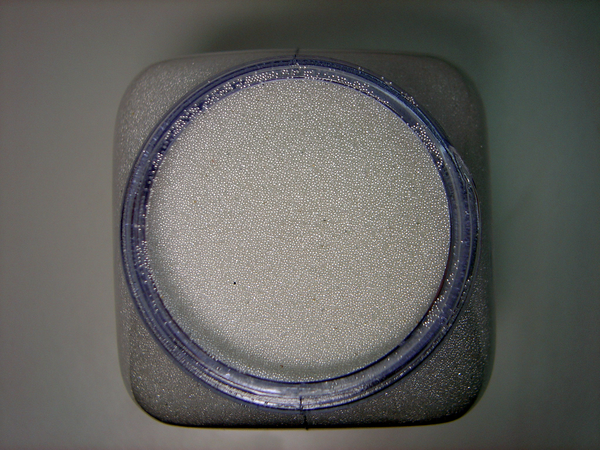

Glasparels

22.222.00010.10 – 0.25 mm Ø, 500 g (ong. 320 ml)
22.222.00020.25 – 0.50 mm Ø, 500 g (ong. 320 ml)
22.222.00030.50 – 0.75 mm Ø, 500 g (ong. 320 ml)
22.222.00040.75 – 1.00 mm Ø, 500 g (ong. 320 ml)
22.222.00051.00 – 1.50 mm Ø, 500 g (ong. 320 ml)
