De Emax is een geheel nieuw type kogelmolen voor het malen met hoge energie. De unieke combinatie van hoge wrijvings- en impactkrachten resulteert in extreem fijne deeltjes in de kortst mogelijke tijd.
legeringen, beenderen, koostofvezel, Katalysatoren, cellulose, cement klinkers, keramiek, chemische producten, kleimineralen, kolen, cokes, beton, vezels, glas, gips, ijzererts, kaolin, kalksteen, metaaloxiden, mineralen, ertsen, papier, pigmenten, plantenmaterialen, polymeren, kwarts, halfedelstenen, slib, slakken, bodems, thee, tabak, afvalmonsters, hout, ...
Bezoek onze toepassingsdatabase om de beste oplossing voor uw monstervoorbereiding of analyse te vinden.
The High Energy Ball Mill Emax combines high-frequency impact, intensive friction, and controlled circular jar movements to a unique and highly effective size reduction mechanism.
The greatest challenge when developing a high energy ball mill is keeping the temperature under control as the enormous size reduction energy leads to considerable heat built-up inside the grinding jar.
RETSCH solved this problem with an innovative integrated water cooling system. Hence, the Emax usually doesn’t require cooling breaks which are typical for long-term processes in conventional ball mills, even at low speed.

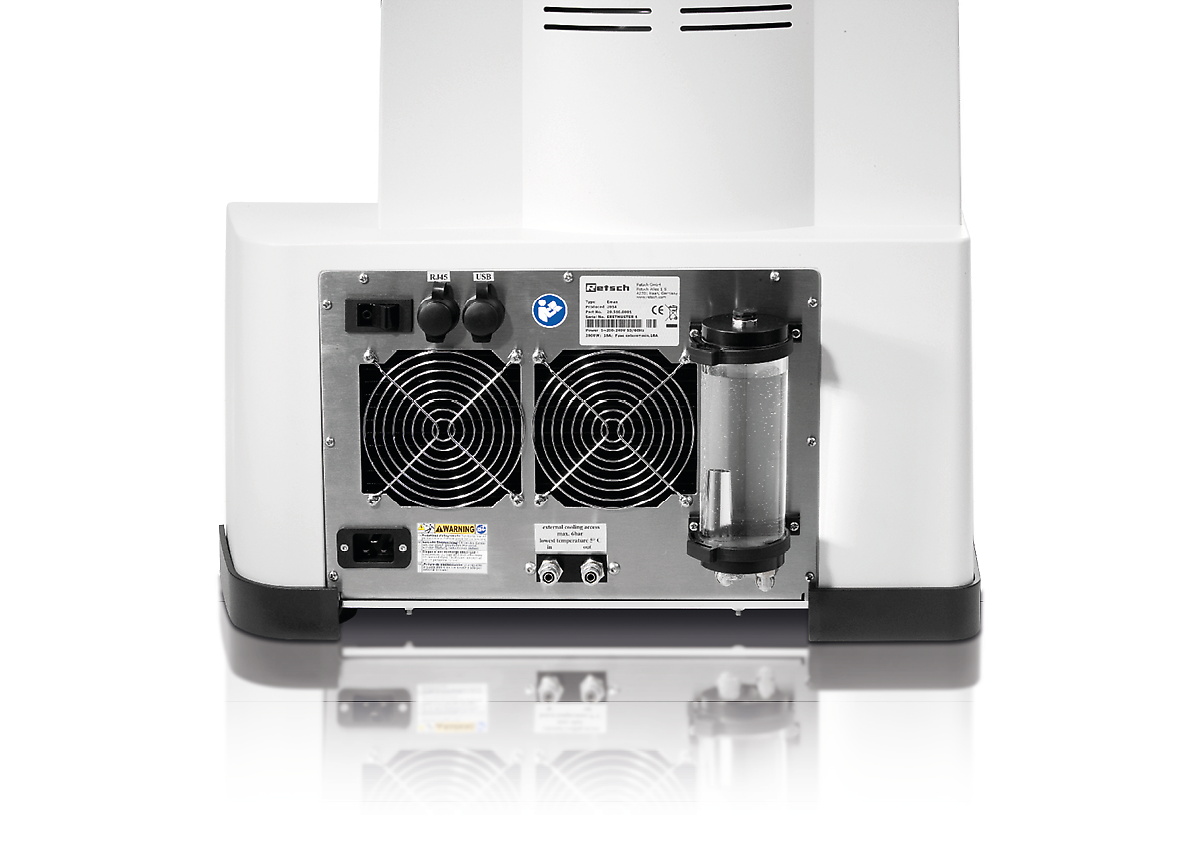

In the Emax the cooling system cools the grinding jars via the jar brackets. This is very effective because heat is more easily discharged into water than into air. The user can choose between 3 cooling modes: in addition to the internal cooling, the mill can be connected to a chiller or the tap to further reduce the temperature.

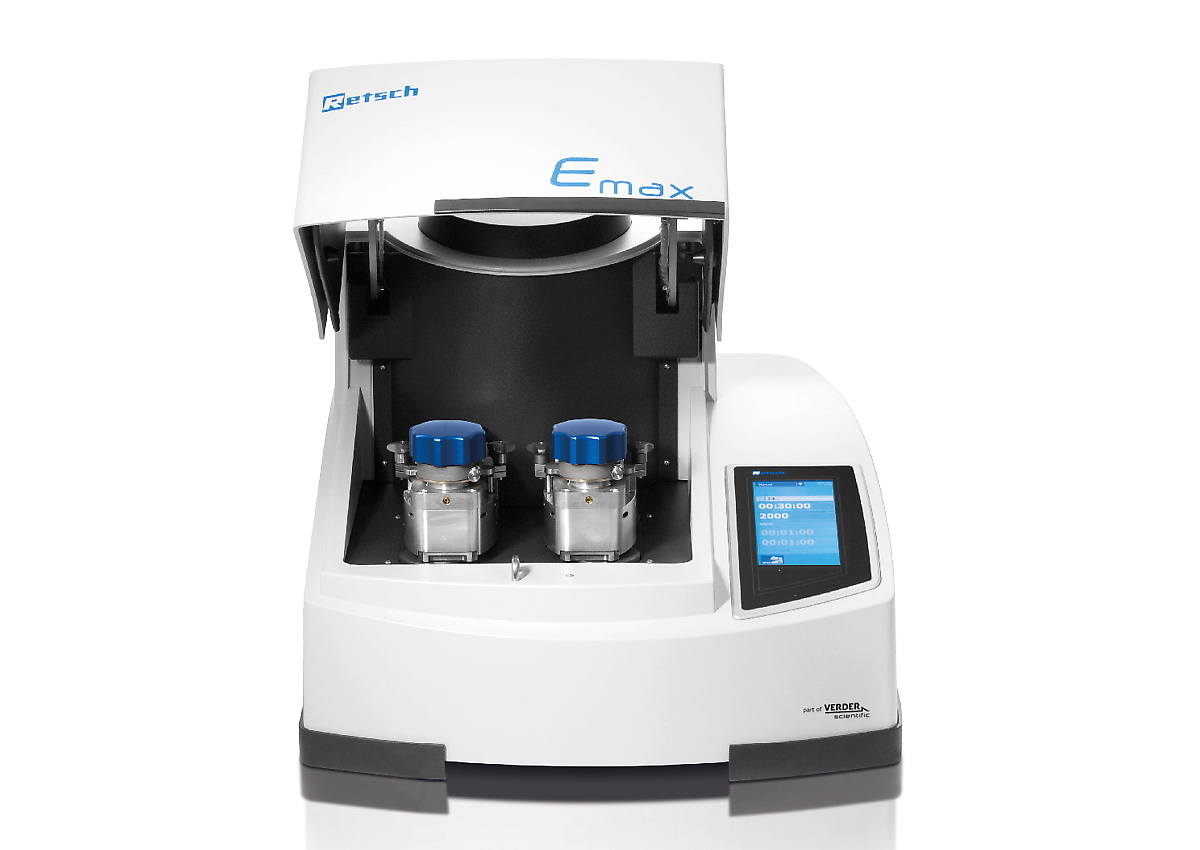

The High Energy Ball Mill Emax combines high-frequency impact, intensive friction, and controlled circular jar movements to a unique and highly effective size reduction mechanism. The grinding jars have an oval shape and are mounted on two discs respectively which move the jars on a circular course without changing their orientation.
The interplay of jar geometry and movement causes strong friction between the grinding balls, sample material and jar walls as well as a rapid acceleration which lets the balls impact with great force on the sample at the rounded ends of the jars. This significantly improves the mixing of the particles resulting in smaller grind sizes and a narrower particle size distribution than is possible to achieve in ball mills.
Available grinding jar sizes are 50 ml, 80 ml and 125 ml, materials include stainless steel, tungsten carbide and zirconium oxide, ensuring contamination-free sample preparation. Grinding balls are available in sizes from 0.1 mm to 25 mm, depending on the material.

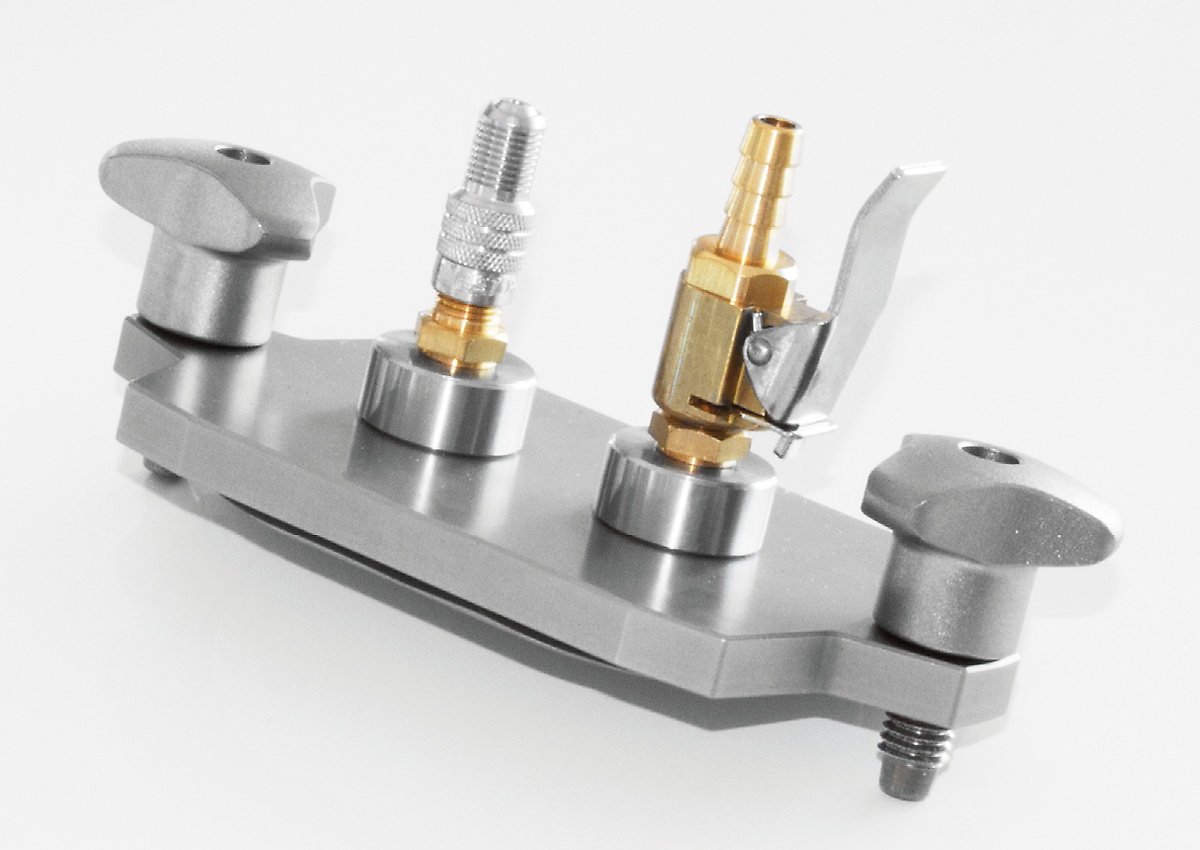

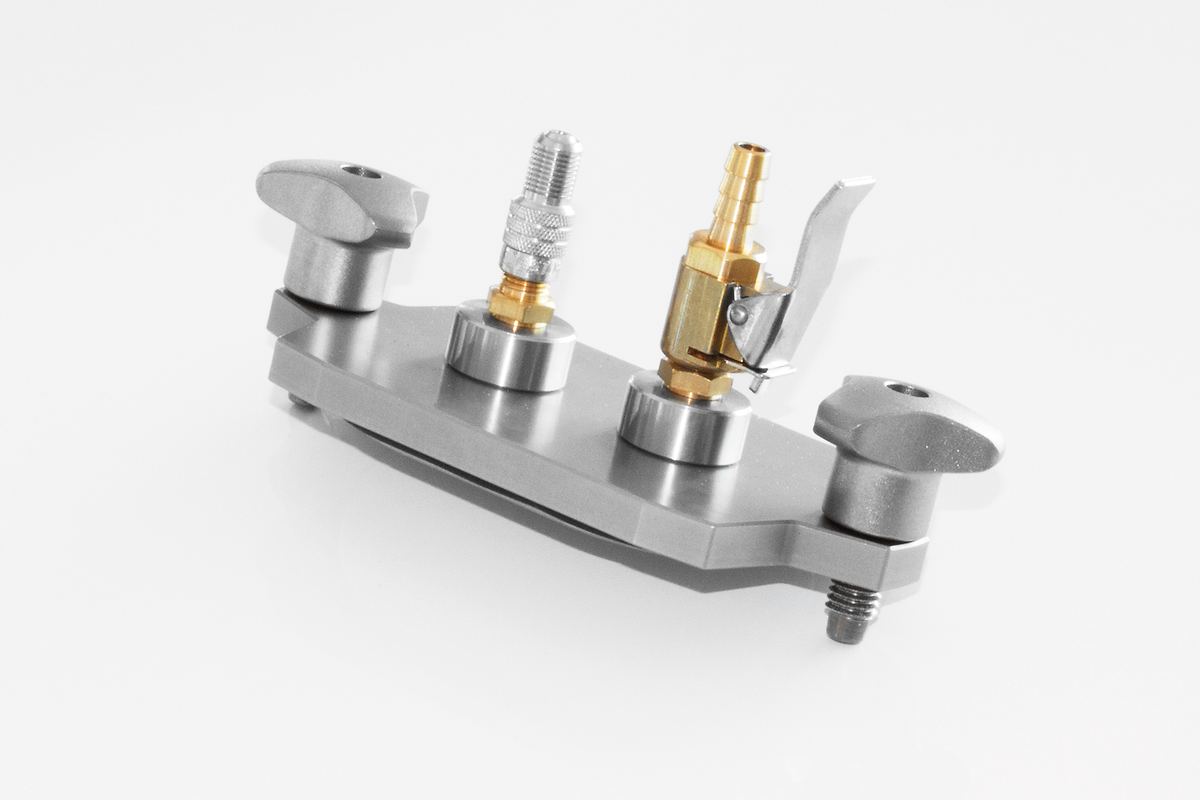

RETSCH offers a special aeration lid for the grinding jars designed for applications where a special atmosphere is to be maintained in the ball mill jar.
The GrindControl measures temperature and pressure inside the jar. The system includes a sensor and transmission unit as well as an analysis software.
| Toepassingen | nano vermaling, deeltjesverkleining, homogenisatie, mechanisch legeren, colloïdaal malen, verkleining met hoge energie |
| Toepassingsdomein | biologie, bouwmaterialen, chemie, engineering / electronica, geneesmiddelen / farmaceutica, geologie / metallurgie, glas / keramiek, landbouw, milieu/ recycling |
| Toevoermateriaal | medium-hard, hard, breekbaar, vezelig - droog of nat |
| Maalprincipe | impact, wrijving |
| Korrelgrootte materiaal* | < 5 mm |
| Eindfijnheid* | < 80 nm |
| Batchgrootte / Toevoerhoeveelheid* | max. 2 x 45 ml |
| Snelheid bij 50 Hz (60 Hz) | 300 - 2000 min-1 |
| Koeling | geïntegreerde gecontroleerde water koeling optie: externe koeleenheid |
| Temperatuurscontrole | ja (min en max temperatuur kunnen gedefinieerd worden) |
| Aantal maalstations | 2 |
| Maalbekertypes | met geïntegreerde veiligheidssluiting |
| Materiaal van maalwerktuigen | roestvrij staal, wolfraamcarbide, zirkoniumoxide |
| Maalbeker maten | 50 ml / 125 ml |
| Instelling maalduur | 00:01:00 to 99:59:59 |
| Interval werking | ja, met optionele omkering van de draairichtingreversal |
| Interval tijd | 00:01:00 to 99:59:59 |
| Pauzetijd | 00:01:00 to 99:59:59 |
| Memoriseerbare standaardprocedures | 10 |
| Interface | USB / LAN ( RJ45) |
| Aandrijving | 3-fasen asynchroon motor met frequentie omvormer |
| Aandrijfvermogen | 2600 W |
| Gegevens electriciteit | 200-240 V, 50/60 Hz |
| Aansluiting electriciteit | mono fase |
| Beschermingsklasse | IP 30 |
| Vermogen | ~ 3100W (VA) |
| B x H x D gesloten | 625 x 525 x 645 mm |
| Netto gewicht | ~ 120 kg |
| Standaarden | CE |
| Patent / Gebruiks-patent | Inclined Grinding bowls (US 8,042,754 B2) |
Onder voorbehoud van technische wijzigingen en eventuele fouten
